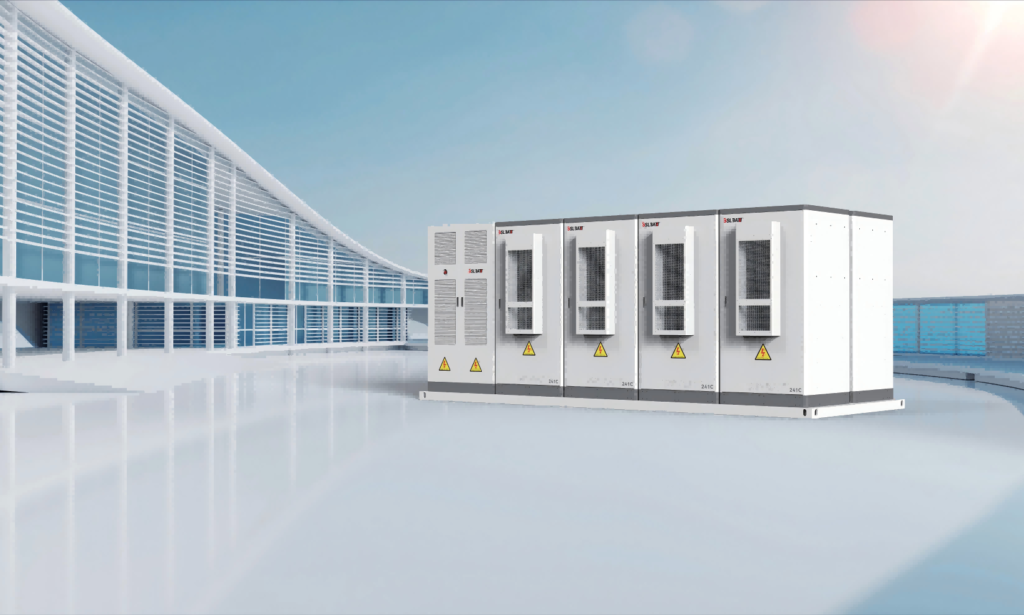

Optimumkan Tenaga Anda dengan ESS-GRID FlexiO
Ubah pengurusan tenaga perniagaan anda dengan sistem perindustrian yang boleh dipercayai dan sangat boleh skala. ESS-GRID FlexiO menggabungkan storan tenaga, tenaga solar, dan penjana diesel dalam satu penyelesaian bersepadu, memastikan operasi yang cekap dan keberkesanan kos yang sangat baik untuk mikrogrid dan aplikasi komersial.
Ciri-ciri Utama
Kapasiti dan Kuasa Tinggi
Sistem 500 kW / 1 MWh direka untuk memenuhi permintaan tenaga intensif dalam persekitaran perindustrian dan komersial.
Kebolehskalaan Fleksibel
Kabinet bateri 241 kWh, boleh diperluas mengikut keperluan, dengan sokongan untuk pengembangan AC dan DC.
Kebolehpercayaan Tinggi dan Jangka Hayat Panjang
Teknologi modul LFP paten, lebih 6000 kitaran, jaminan 10 tahun, dan kawalan suhu pintar.
Keselamatan Termaju
Seni bina perlindungan kebakaran tiga peringkat, digabungkan dengan BMS pintar dengan perlindungan aktif dan pasif bersepadu.
Kawalan Adaptif
Algoritma prakonfigurasi yang mengurangkan kebergantungan kepada EMS, menurunkan kos operasi.
Pemantauan Intuitif
Teknologi visualisasi 3D yang membolehkan penyeliaan masa nyata status setiap modul, memudahkan operasi dan penyelenggaraan.
Senario Aplikasi
Ideal untuk mikrogrid di kawasan terpencil, ladang, kemudahan perindustrian berskala besar, dan stesen pengecasan kenderaan elektrik.
Juga sesuai untuk integrasi dengan sistem fotovoltaik, penyelesaian hibrid, dan sistem off-grid, memastikan bekalan tenaga yang berterusan, stabil dan boleh dipercayai.
| Picture | Model | ESS-GRID P500E |
 |
AC (grid-connected) | |
| PCS Rated AC Power | 500kW | |
| PCS Maximum AC Power | 550kW | |
| PCS Rated AC Current | 720A | |
| PCS Maximum AC Current | 790A | |
| PCS Rated AC Voltage | 400V，3W+PE/3W+N+PE | |
| PCS rated AC frequency | 50/60±5Hz | |
| Total harmonic distortion of current THDI | <3% (rated power) | |
| Power factor | -1 overrun ~ +1 hysteresis | |
| Voltage total harmonic distortion rate THDU | <3% (linear load) | |
| AC (off-grid load side) | ||
| Load Voltage Rating | 400Vac，3W+PE/3W+N+PE | |
| Load Voltage Frequency | 50/60Hz | |
| Overload capacity | 110% long term operation; 120% 1 minute | |
| Off-grid output THDu | ≤ 2% (linear load) | |
| DC Side |
||
| PCS DC side voltage range | 625~950V (three-phase three-wire) / 670~950V (three-phase four-wire) | |
| PCS DC side maximum current | 880A | |
| System Parameters | ||
| Protection class | IP55 | |
| Protection grade | I | |
| Isolation mode | Transformer isolation: 500kVA | |
| Self-consumption | <100W (without transformer) | |
| Display | Touch LCD touch screen | |
| Relative humidity | 0~95% (non-condensing) | |
| Noise level | Less than 78dB | |
| Ambient Temperature | -25℃~60℃ (Derating above 45℃) | |
| Cooling method | Intelligent air cooling | |
| Altitude | 2000m (over 2000m derating) | |
| BMS Communication | CAN | |
| EMS Communication | Ethernet / 485 | |
| Dimension (W*D*H) | 1450*1000*2300mm | |
| Weight (with battery approx.) | 1700kg±3% | |
| Picture | Model | ESS-GRID P500L |
|
Photovoltaic (DC/DC) Power Rating | 500kW |
| PV (Low Voltage Side) DC Voltage Range | 312V~500V | |
| PV Maximum DC Current | 1600A | |
| Number of PV MPPT circuits | 10 | |
| Protection Rating | IP54 | |
| Protection Rating | I | |
| Display | Touch LCD touch screen | |
| Relative Humidity | 0~95% (non-condensing) | |
| Noise level | Less than 78dB | |
| Ambient Temperature | -25℃~60℃ (Derating above 45℃) | |
| Cooling Method | Intelligent air cooling | |
| EMS Communication | Ethernet / 485 | |
| Dimension (W*D*H) | 1300*1000*2300mm | |
| Weight | 500kg±3% |
| Picture | Model number | ESS-GRID 241C |
ESS-BATT Cubincon 200kWh / 215kWh / 225kWh /241kWh |
Rated Battery Capacity | 241kWh |
| Rated System Voltage | 768V | |
| System Voltage Range | 672V~852V | |
| Cell Capacity | 314Ah | |
| Battery Type | LiFePO4 battery（LFP） | |
| Battery series-parallel connection | 1P*16S*15S | |
| Maximum charge/discharge current | 157A | |
| Protection Grade | IP54 | |
| Protection Grade | I | |
| Cooling and heating air conditioning | 3kW | |
| Noise level | Less than 78dB | |
| Cooling Method | Intelligent air-cooling | |
| BMS Communication | CAN | |
| Dimension (W*D*H) | 1150*1430*2300mm | |
| Weight (with battery approx.) | 3310kg±3% | |
| The system uses 5 clusters of 241kWh batteries for a total of 1.205MWh | ||
